Les Dolomites - an open GIS view on a World Heritage site

The United Nations Educational, Scientific and Cultural Organization (UNESCO) seeks to encourage the identification, protection and preservation of cultural and natural heritage around the world considered to be of outstanding value to humanity.

The Alpine Convention, an international treaty between the Alpine Countries (Austria, France, Germany, Italy, Liechtenstein, Monaco, Slovenia and Switzerland) as well as the EU for the sustainable development and protection of the Alps, had a working group UNESCO world heritage.

In June 2009 UNESCO listed the Dolomites as a World Heritage Site for the aesthetic value of its landscape and for the scientific importance of its geology and geomorphology.

Nine so called systems within the World Heritage Site:
  • Pelmo, Croda da Lago
  • Marmolada
  • Pale di San Martino, San Lucano, Dolomiti Bellunesi, Vette Feltrine
  • Dolomiti Friulane and d’Oltre Piave
  • Dolomiti settentrionali
  • Puez-Odle
  • Sciliar-Catinaccio, Latemar
  • Bletterbach
  • Dolomiti di Brenta
It's worth to visit them in nature!

The free and open pieces:
Download ASTER GDEM tiles freely from e.g. EarthExplorer and build a VRT from a list of the tiles by gdalbuildvrt.
gdalbuildvrt asterv2.vrt -input_file_list aster_file_list.txt
Import the VRT into GRASS GIS.
 # GRASS GIS input=asterv2.vrt output=asterv2
Go to the ProtectedPlanet website and search for Italy to download the GIS data of italian protected areas; then search for Dolomites to get the related WDPA ID.
# GRASS GIS - import GIS data of  protected area with WDPA ID 478641 (Dolomites) input=WDPA_Jan2016_ITA-shapefile-polygons.shp layer=WDPA_Jan2016_ITA-shapefile-polygons output=world_heritage_site_les_dolomites where=WDPA_PID=478641
Import and reproject the Alpine Convention perimeter:
# GRASS GIS - reproject from EPSG 3035 while importing in a EPSG 4326 (WGS84) location
v.import input=AC-perimeter_ifuplan_16072007.shp output=world_heritage_site_les_dolomites epsg=3035
And then enjoy open data of a world heritage site and open GIS.
location of the world heritage site Dolomites within the perimeter of the Alpine Convention
ASTER GDEM of the southern Alps and world heritage site Dolomites
Smoothing the ASTER GDEM:
r.neighbors input=asterv output=asterv2_rneigh_average_3x3 method=average size=3
ASTER GDEM and world heritage site Dolomites in 3D view (GRASS GIS) from southeast
ASTER GDEM and world heritage site Dolomites in 3D view (GRASS GIS) from southwest
As the Dolomites are known for their rich geomorphology, zoom in a bit.

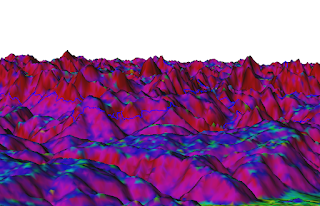

ASTER GDEM and world heritage site Dolomites in 3D view (GRASS GIS) zoomed in
 ASTER GDEM and world heritage site Dolomites in a grey 3D view (GRASS GIS) zoomed in
ASTER GDEM and world heritage site Dolomites in 3D view (GRASS GIS) zoomed into slope map
